Tools

Regular Expressions

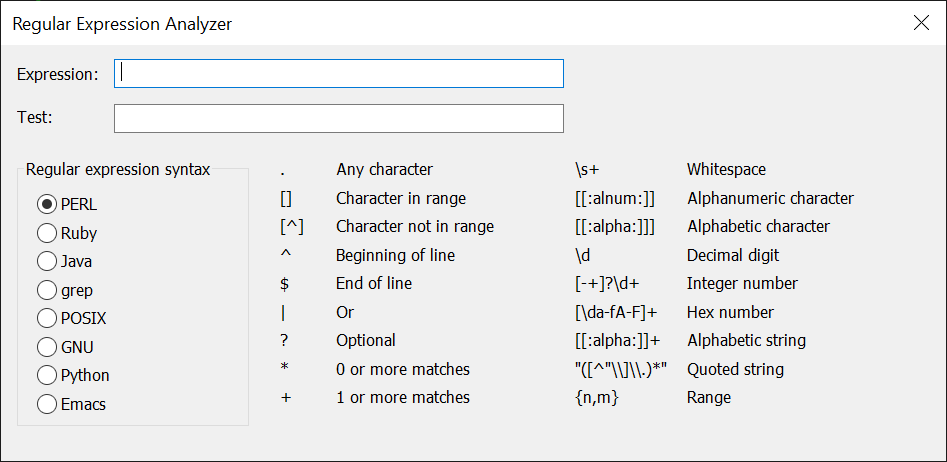

TCEDIT includes a regular expression analyzer dialog. There are two edit boxes:



1) The first is for the regular expression to test.. If the regular expression is valid, the dialog will display a green check to the right of the expression edit box. If the regular expression is invalid, the dialog will display a red X.

2) The second edit box is for the text you want to match against the regular expression. If the text matches the regex, the dialog will display a green check to the right of the test edit box. If the text doesn't match, the dialog will display a red X.



You can also choose the regular expression syntax you want to use (Perl, Ruby, Java, etc.). The analyzer will default to the current default for Take Command.



regex22



Lookup Errors



Opens a small dialog that lets you look up Windows and network error messages based on the integer value. You can enter hex input with a leading x or 0x.



lookuperror



Char Map



Opens the Windows Character Mapping dialog that lets you look up and copy characters for any font.



charmap
